The Final Piece...the Tall Hat

This is it...the last piece for my 1570s Germans suit.  And boy, am I happy it's finally done.  The hat itself was a fairly quick and simple project....but I have been working on the overall project for just under a year now.  Because it is the last piece (yay!) I was able to enter it into the first Historical Sew Monthly challenge of 2017--Firsts and Lasts.

The Project:

This is an extremely tall, woolen hat, similar in profile to several examples from the period of 1570s Germany, which is part of my full suit from the same period (well, of course).  Unlike quite a few later examples, and my last tall hat, the covering is not a gathered circle, but fits smoothly over the base.
Männertracht aus Braunschweig (23v)

The Sources:

I don't actually have that many sources for this project, since I didn't base the construction on anyone else's work, but came up with it on my own.  The primary source for the appearance of the hat is the above plate, which is labeled as being of a "Portrait of a Man from Brunswick" from Kostüme der Männer und Frauen in Augsburg und Nürnberg, Deutschland, Europa, Orient und Afrika - BSB Cod.icon. 341, Männertracht aus Braunschweig (23v).  I will show a couple of other random tall hats as well.  Patterns of Fashion 3 by Janet Arnold also plays a minor part.

The Lieutenant. Nikolaus Solis


Really, this is not a lower class hat.  I suppose they could be worn by the poor--same as a Victorian beggar might have a (rather battered) top hat as a hand-me-down.  However, I will grant that the records are obviously incomplete, since portraits are almost always of upper or high middle class, and any surviving ones are more likely to have belonged to the rich folks--on the other hand, there are examples in a series of woodcuts of Soldiers.  As a separation from my rendition and the period, the hats would have been made by a specialist...a hatter; my rendition could have been made by a tailor, what with the padstitched base.

Garment Description:

As a (general) rule, they are a tall hat with a rounded top--usually more so than I managed since the wool is more flexible--and a relatively narrow brim; sometimes the brim was almost nonexistent.  When I say tall, I mean extremely so--roughly the same height as the head, or ever taller.  Oddly, most examples are black.

Unknown Elizabethan Gentleman, 1577.

My Goals:

Overall, my motivation was fairly simple...I needed a tall hat to top off the outfit.  The correct appearance and silhouette was the primary goal, rather than attempting a moulded felt hat, which--while I know how--I don't really have the materials or tools for.  And felting in an Oerthan winter sucks if you don't have an indoor space you can get messy (which I don't).  So, my goals were to make a hat which looks like a one piece felted hat of the correct shape (from a fairly close distance, which means I had to hide my seams), yet not attempting completely period construction.  I also wanted to see if I /could/ shape that round top with only padstitching--the answer is yes, and I am curious how far I can push, say, shaping a fedora type hat purely with padstitching.  But that really is off topic.

Pages 93/94 of Patterns of Fashion 3
With that said, the covering of a base is slightly plausible--there is an example of a tall hat in PoF, on page 94, which has a felted base (unknown whether it is one piece or stitched) and is covered in velvet, however, it is the pleated style of tall hat and somewhat later.  Further slightly supporting the multi-piece stitched construction is the felt comb Morion at on the previous page (93)--while made of thick felt, was not felted in one, but consists of four pieces; the comb, two side pieces with darts taken out, and the brim.

Materials: I have to discuss this section?  Well, the main material /is/ black, heavily fulled wool, that is good at least.  Even if it isn't actual felt.  ....that's about all.  The hat should probably be made of a single piece of tightly felted wool--this is stiff enough to support itself, a velvet covering (if applicable) and silk lining.

Ideally, sewing the hat this way, it should have been linen canvas/wool felt, or just heavy wool felt for the base, the wool broadcloth for the shell was almost perfect, and a silk taffeta for the lining.

Mine, on the other hand has a base of (cotton) canvas and thin felt, a shell of the black wool, and is lined with cotton flannel, since I found that I didn't have enough of the red linen left over from the doublet and jerkin to do the lining.  The differences  in materials--especially those of the base--were primarily due to cost or availability, and my lack of desire to do a felted hat.

The threads, however are all correct--all of the sewing was done with linen threads; either a heavy white linen for the padstitching, or a medium black linen for the regular stitching.


Overall, the pattern is quite simple--just a upper curved to allow the top to be smaller, the oval brim, and the circular top.  Of course, each piece had to be cut three times for the base, shell, and lining (or five, if you count each layer in the base).  That is it, though--only difference between the pieces is that the top of the base had a dart cut out of it to turn it into a cone, rather than flat.

Mostly, I almost draped the pattern--I did measure what I wanted the finished circumference around my head and at the top to be, then added a good inch and a half to each side...because when you pad stitch something, it shrinks.  After the pad stitching, I trimmed it to size.  The brim was patterned from the crown; I did decide on the width based on the proportions of the brim width to height of the inspiration hat (The Brunswick man image), and calculated from that.

Kostüme der Männer und Frauen in Augsburg und Nürnberg, Deutschland, Europa, Orient und Afrika - BSB Cod.icon. 341


Well, I'm going to go in order.  The crown was extensively sewn with pad stitches, a stitch which is used to shape and stiffen interlinings, and is found in several later period doublets (Figures 106, 140, 176 of PoF).  Because of the thickness of the layers of the crown, the seams were butted and sewn with an overcast stitch to reduce bulk.

The verticals and crown of the shell was sewn together with a fine backstitch, as were the corresponding seams of the lining.  The bottom of the shell was attached to the base with a kind of reverse stab-stitch, over the excess fabric of the brim--I figured it as being the best way to keep it attached and taut, while keeping the stitches low profile.  The brim was curved turned over to cover the edge, and sewn down to the underside of the brim with an overcast stitch--this was chosen in order to thicken the edge similarly to the image, and honestly--for ease; I didn't feel like bias cutting and piecing a bunch scraps of the wool for edge binding.

The lining of the brim was sewn down with an overcast stitch on both the inside and outside, covering the crown lining and the wool from the shell.


 I started out by roughly measuring and cutting out the side foundation extra large, then basted around every edge and a couple of rows in the middle.  This was done to keep the layers from shifting and bubbles from forming--last time I made a hat with this method, that was an issue.

Here, you can see the hat a bit over halfway padstitched.  The vertical rows create quilted channels to stiffen it, and using pad stitching helps it curve easily.

After trying it on, I found that I needed to make a couple of adjustments--as expected.  You can see here what I cut off.

 I trimmed the outer layer of canvas to reduce bulk even more, and butted the edges together with an overcast stitch in heavy linen.

Now for the rounded crown...this was quite fun.  I measured the top of the hat to find what circumference I would actually need, then added two inches.  After basting it to avoid the aforementioned puckering, I remeasured the amount I needed, and removed the wedge of excess.  This cutout was bound with a buttonhole stitch to help support the edge.

And then closed up with a whipstitch.

With the top now in one, conical piece, I began padstitching to shape it into a curved bowl.  Remembering that pad stitching curves the layers perpendicular to the direction the row is going, I decided to work it by spiraling in from the outside with moderate tension.  This is the result.

If you are using padstitching in order to stiffen rather than curve, the rows of stitches need to go the same direction you want it stiffened in.  So for the brim, they went radially around circle.  I didn't bother stitching inside the inner circle, since that was immediately cut out for the head.

The hat is beginning to take shape.  At this point, I hadn't cut out or sewn the brim to the crown.  Also...a ruff photobombing the hat progress picture.

Like the cut edges of the top, I decided to support the raw edges of the brim with a wide buttonhole stitch.  This turned out to be a good idea, since I only had to worry about catching that stitch when stitching it to the upper.

Terrible photo, sorry--my camera didn't want to behave with photographing something both black and white.  But here I am installing the crown lining--in order to keep it in place, I used wide stitches to secure it at both top and bottom.

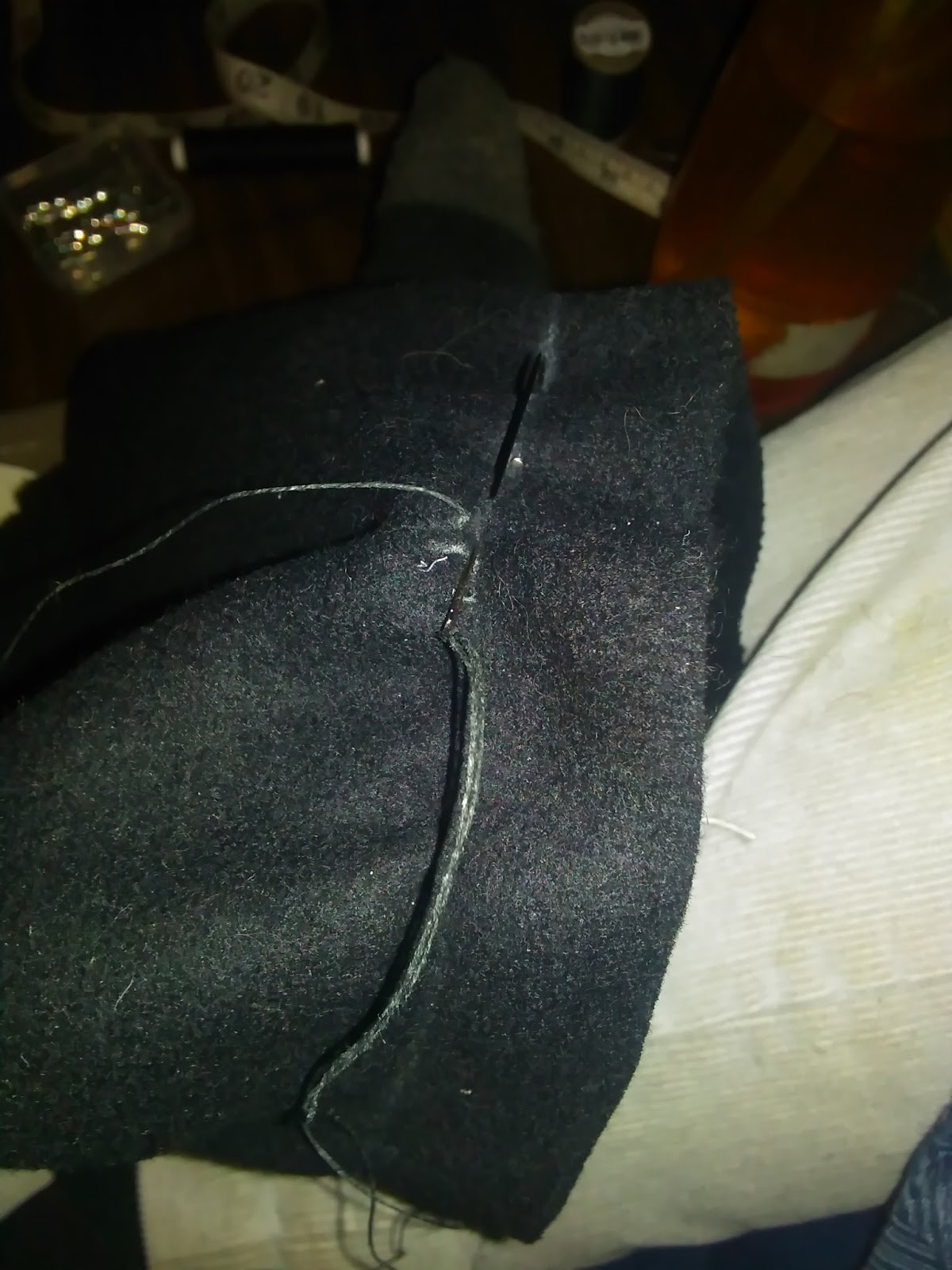

I'm not entirely sure which piece this is, but suspect I am sewing the crown to the side of the hat with running/backstitch.  Every 4-6 stitches, I would do a backstitch to help lock them into place.  The other seams in the shell were sewn the same way.

 And the upper fitted into place over the crown.  It turned out a touch short, but that is okay, since it allowed me to place some tension to keep it smooth.

Now for a fun part; here, you can see the piecing in the fabric for the brim--like the upper, it was sewn with a running stitch and occasional backstitches.  This is the best photo I have of the process of rantering the seam--an 18th century technique used to hide joins in woolen fabrics.  To the best of my knowledge, it is not a seam seen in the 16th century--I chose to use it purely to hide the piecing.

Essentially, it works by brushing up a nap on the wool seam (left), using a fine silk thread to catch the fibers and pull them together on the right side, brushing again, then rubbing to felt the fibers.  At that point, it can be either brushed again to smooth out the nap, or shaved if a smooth finish is desired.  For more information on rantering, and the variations of stotting, and fine-drawing, read this interesting article on late 18th century tailoring stitches.

Before fitting the topside of the brim into place, I roughly cut the center hole, intentionally cutting it small.  I then notched it down to just above the intended edge and pulled it down over the crown.  In order to get a nice, sharp angle, I backstitched through the brim right at the seam between the upper and brim.

Now I could pull the crown down over the foundation (after rantering the rest of the shell seams).  In order to keep tension, I used black linen thread to secure the bottom with a stab stitching, backwards (the angled thread on the wrong side) pad stitch variation.

Then much more brushing and teasing of the fabric was done to raise the nap and blend the seams.  To do all the brushing, I used a wire dog brush instead of teasles.

With the shell now in place, I trimmed the excess of the wool brim slightly, turned it over the edge of the brim foundations, and secured with an overcast stitch.

Likewise, the brim lining was sewn with an overcast stitch to cover the raw edge of the wool.  The inside of the brim was also secured with an overcast stitch, being turned under and covering the crown lining.

Image by Twobears Photography
And Completed!  The hatband is just a roll of linen.  Eventually, I need to track down three white ostrich feathers as well, and will probably redo the hat band at that time to make it slightly wider.

Conclusions (and what I learned):What Would I Do differently:

This was a fun project, actually...but I didn't learn all that much.  There were some details about rantering seams (which I had done before), likewise padstitching.  Learning the best way to support the edges of the foundation was helpful (wide buttonhole stitches).  The number one thing was I got closer to it not being too tight--it's still rather snug, but not to the point of giving me headaches.

Within this construction style, I would primarily cut the cone of the very top to be deeper, and support all the edges with the buttonhole stitches as mentioned.  I would like to do it properly one of these days, as a fully blocked hat, and either way it's made I would have much preferred to line it with a silk.

Image by Trisha Geiglein-Bryant

How Historically accurate is it:

Sadly, not very--this is more the result if the only person available to make you a hat was a tailor; rather than felt formed over a hat block, pad stitching is used to shape it. The techniques are plausibly period, however, and the materials are modern analogues (except the flannel lining…I didn’t have enough linen or silk). I am going to say around 55%.


The hat is a nice, short project--only took 14 hours, 30 minutes over the course of a week.

HSM Challenge Info:

What the item is: A Tall hat for the 1570s Germans that was this year's major project.

The Challenge: Firsts and Lasts. This is the last item truly required for the suit; while a shaube would be nice, it will be made to be fairly generic for the period so I can wear it with my Sture Suit as well as anything else I may make from around that time.

Fabric/Materials: Cotton canvas, felt, wool broadcloth, flannel (lining). The band is linen.

Pattern: My own.

Year: 1570s

Notions: A ton of linen thread, mostly. Eventually, I will find some ostrich feathers as well.

How historically accurate is it?: Not as much as I would like—this is more the result if the only person available to make you a hat was a tailor; rather than felt formed over a hat block, pad stitching is used to shape it. The techniques are plausibly period, however, and the materials are modern analogues (except the flannel lining…I didn’t have enough linen or silk). Going to say around 55%.

Hours to complete: 14.5 hours.

First worn: Not yet! Sunday the 22nd.

Total cost: I don’t really know… figure half a yard of most of the fabrics, 1/4th of the wool….18-20 US? bibliography.  The only source other than images--which have their sources attached--is Patterns of Fashion.
